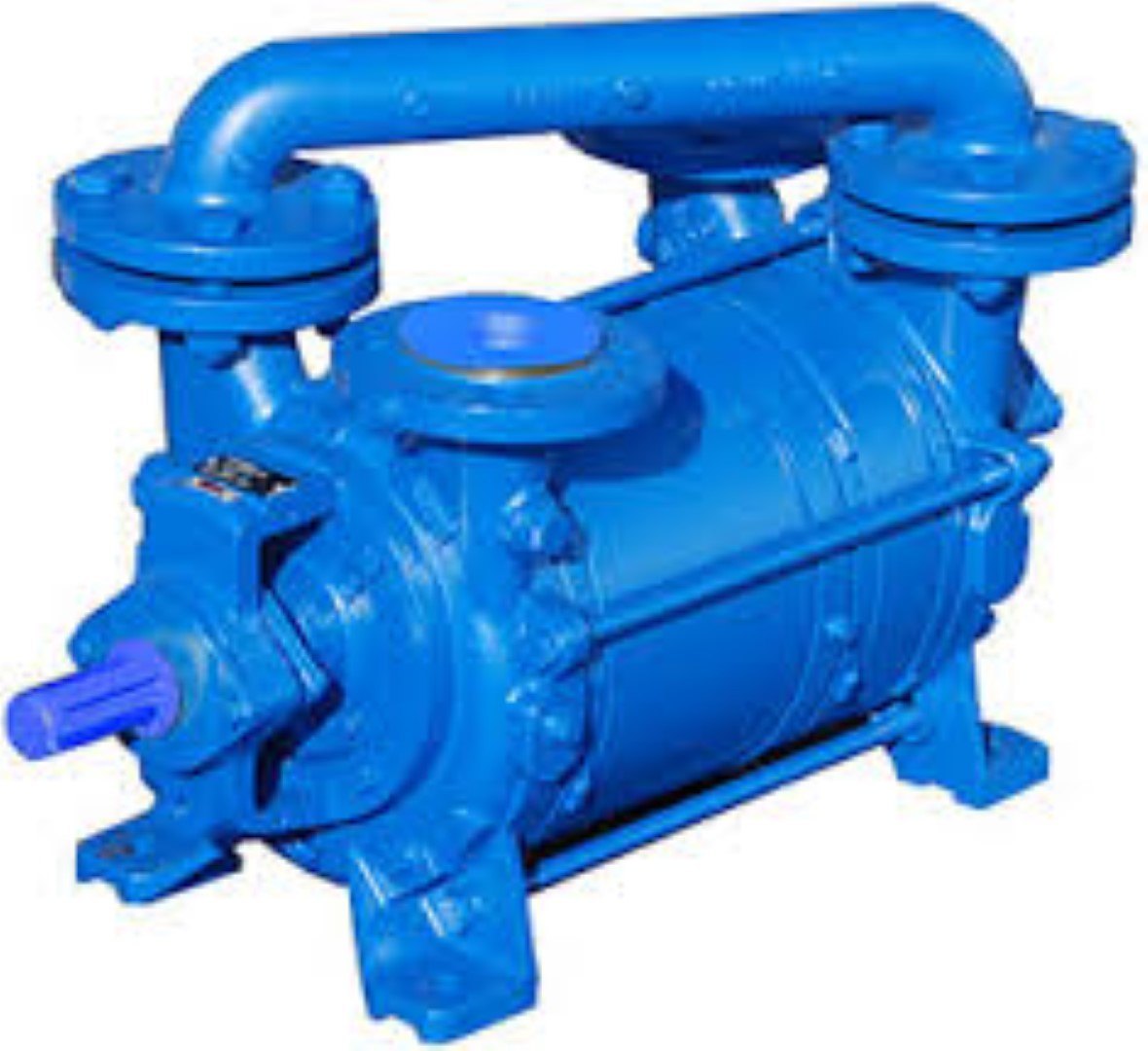

Two Stage Liquid Ring Vacuum Pump

Pump Model  Max. Cap.(m3/hr.) Water Reqd.(LPM) Rec.Motor HP/Speed
JHW2-2 30  05 2/2850
JHW2-5 85  07 5/1450
JHW2-7   160  09 7.5/1450
JHW2-10 200  14 10/1450
JHW2-15 330 20 15/1450
JHW2-20 400 24 20/1450
JHW2-20(S) 460  24 20/1450
JHW2-25  580  30 25/1450
JHW2-30  680     40 30/1450
JHW2-40  980 50  40/1450

Liquid Ring Vacuum Pumps are mostly known as (LRVP). These are found in numerous ranges such as Single stage, double stage and in also TRVX Variport due to which it can cover most rigid vacuum applications. If these vacuum pumps are designed and manufactured as per unique designs then they can be best for any kind of applications. These can deliver great results possessing less body weight and profiles. As there are numerous vacuum pumps avaible in the market but the liquid ring vacuum pumps are best and can be used for numerous usages.



The following are its features:-



1-Due to the liquid ring it becomes easy for handling the condensable vapors.

2-The pumping capacity - 49m3/hr to 1080m3/hr

3-Excellent reliability & quality

4-Ultimate pressure – 33mbar

5-Pump size is compact without affecting its performances.

6-Full SS body and the impeller construction are available for handling the corrosive vapor.

7-It is made up of tough materials due to which they can adjust with the challenging applications.

8-Hydropac is available.

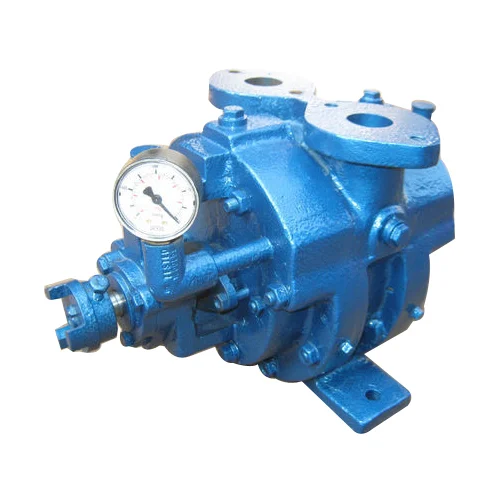

Single Stage Water Ring Vacuum Pump

Liquid Ring Vacuum Pumps are mostly known as (LRVP). These are found in numerous ranges such as Single stage, double stage and in also TRVX Variport due to which it can cover most rigid vacuum applications. If these vacuum pumps are designed and manufactured as per unique designs then they can be best for any kind of application. These can deliver great results possessing less body weight and profiles. As there are numerous vacuum pumps available in the market but the liquid ring vacuum pumps are best and can be used for numerous usages

The following are its features:-



  1. Due to the liquid ring it becomes easy for handling the condensable vapors.
  2. The pumping capacity - 49m3/hr to 1080m3/hr
  3. Excellent reliability & quality
  4. Ultimate pressure – 33bar
  5. Pump size is compact without affecting its performances.
  6. Full SS body and the impeller construction is available for handling the corrosive vapor.
  7. It is made up of tough materials due to which they can adjust with challenging applications.
  8. Hydropac is available.
Modal No. Suction Cap  Max.Vac. Water Req. Pressure   Motor Hp/RPM
JHW1 49/3 49 M3/hr 710 mmhg. 07 LPM 0.5 TO 0.6 Kg./cm2 3/2850
JHW1 81/5 81 M3/hr 710 mmhg. 09 LPM 0.5 TO 0.6 Kg./cm2 5/2850
JHW1 123/7.5 123 M3/hr 710 mmhg. 14 LPM 0.5 TO 0.6 Kg./cm2 7.5/2850
JHW1 165/7.5 165 M3/hr 710 mmhg. 16 LPM 0.5 TO 0.6 Kg./cm2 7.5/1450
JHW1 220/10 220 M3/hr 710 mmhg. 20 LPM 0.5 TO 0.6 Kg./cm2 10/1450
JHW1 330/15 330 M3/hr 710 mmhg. 30 LPM 0.5 TO 0.6 Kg./cm2 15/1450
JHW1 440/20 440 M3/hr 710 mmhg. 40 LPM 0.5 TO 0.6 Kg./cm2 20/1450
JHW1 725/30 725 M3/hr 710 mmhg. 60 LPM 0.5 TO 0.6 Kg./cm2 30/980
JHW1 1080/40 1080 M3/hr 710 mmhg. 100 LPM 0.5 TO 0.6 Kg./cm2 40/980
