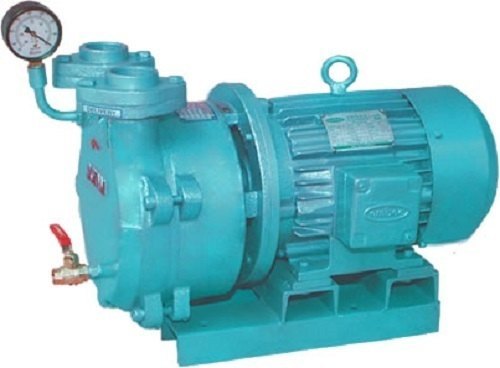

Monoblock Vacuum Pump

S.NO Model No.

  Motor

 H.P     |   RPM

Suction

M3/Hr.|   LPM
1 JH MV 1  1 | 2850 18       |       3
2 JH MV 2  2 | 2850 24       |       4
3 JH MV 3  3 | 1450 49       |       7
4 JH MV 4  5 | 1450 81       |       9
5 JH MV 5  7.5 | 1450 123     |      12
6 JH MV 6  10 | 1450 220     |       15
7 JH MV 7  15 | 1450 330     |       22

To resist the fluctuating voltage certain vacuum pumps are designed with the impeller of best quality of metal- bronze. These pumps are best for motor burning as well as preventing the overloading. These pumps are found to be sturdy cased, and provides with suction, delivering nozzles and foot. These monoblock vacuum pumps are utilized in assembling with the huge, printing machines and extrusion machines.

The following are the features of monoblock vacuum pump:-

  • 1. For single phase the voltage ranges between 180v – 240v
  • 2. For three phases the voltage ranges between 300-440 V
  • 3. B Modules are insulated with IP-44 protection.



Application of monoblock vacuum pump:-

  • Evaporation
  • Filtration
  • Drying
  • Condensation
  • Distillation
  • Sterilization
  • Evacuation of the air through the chamber and suction pipes
  • Bottle filling
  • Twist drilling machines
  • Priming of the large pumps



The following are their important specifications:-

  • Air flow rate is up to 55 m3 /hr
  • Vacuum till 720 cm of the mm/hg
  • Power rating between 0.75 kW – 11 kW
